Stress tests for Ankle ligaments

Original Editor - Vidhu Sindwani

Top Contributors - Vidhu Sindwani, Evan Thomas and Wanda van Niekerk

Introduction

Ankle sprains are one of the most common musculoskeletal and sports-related injuries, constituting nearly 25% of all musculoskeletal trauma cases and almost 40% of all sports-related trauma cases.[1] 40%-50% of these case have reported to have long term residual symptoms with almost 20% of acute ankle sprains developing chronic ankle instability[2] Individuals with chronic instability often report recurrent sprains and 'giving-way' sensation at the ankle joint, a condition clinical referred to as Functional Ankle Instability (FAI). [3] Several clinical tests can be used to assess FAI and the respective ligament involved in the acute sprain or chronic instability.

Relevant Anatomy

Ligaments of the ankle

Lateral ankle ligaments

The lateral side of the ankle has three supporting ligaments: the anterior talofibular ligament (ATFL), the posterior talofibular ligament (PTFL) and the calcaneofibular ligament(CFL). The three ligaments are together called the Lateral Collateral Ligament Complex. The ATFL resists torsion and inversion stresses in a plantar flexed foot. It is the weakest and hence the most commonly injured part of the Lateral Collateral Ligament Complex. [1]

CFL is an extra-articular component of the complex. Its function is to resist torsion and inversion stresses in a dorsiflexed foot. The PTFL resists posterior movement of the talus. It is the strongest and least injured part of the complex. Injuries to PTFL usually occur in severe ankle sprains which also involve the ATFL and CFL.[4]

Lateral Ankle Ligaments

Medial Ankle Ligaments

The deltoid ligament is the only ligamentous complex stabilizing the medial side of the ankle. This complex is composed of two layers: superficial and deep. The superficial layer includes the tibionavicular, tibiocalcaneal and the posterior talotibial ligament. The deep layer is composed of deep posterior talotibial and deep anterior talotibial ligament. The deep layer has greater contribution to the stability of the ankle.[1] The deltoid ligament as a whole has a dual function of providing stability to the talotibial joint as well as transferring forces between the tibia and tarsus. It fixates the tibia above the talus and restricts the talus from shifting into a valgus postion, translating antero-laterally or rotating externally.[5]

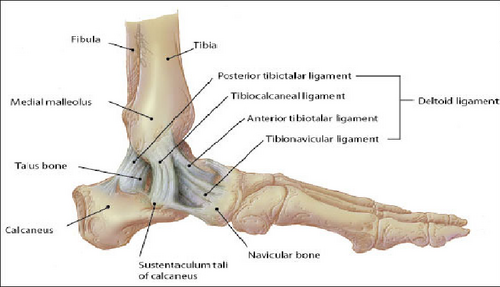

Medial ankle ligaments

The medial side of the ankle is considerably stronger than the lateral side. Injury to the medial ankle may even lead to fracture of the medial malleolus without a significant sprain to the deltoid ligament.[1]

Stress testing for Ligaments

1. Anterior Drawer Test[4]

It is used to assess the integrity of the ATFL based on the anterior translation of the talus under the tibia in a sagittal plane.

Procedure: The patient is in supine lying or sitting position with the knee in flexed position to relax the calf muscles and prevent the patient from resisting the examiner. One hand of the examiner stabilizes the distal tibia and fibula while the other hand holds the calcaneus maintaining the ankle in a neutral position or 20 degrees of plantar flexion. A translatory force is applied on the calcaneus pulling it anteriorly while the tibia and fibula are pushed posteriorly. The test is performed on both sides and the two sides are compared. Excessive anterior translation of the talus on the injured side in comparison to the uninjured side indicates a positive test. A translation of more than 4-5 mm on the injured would indicate a tear of ATFL.

2. Talar tilt test[4]

It is also known as the inversion stress test and it stresses the calcaneo-fibular ligament,

Procedure: The patient is positioned in sitting or supine lying with the knee in full extension. The examiner stabilizes the distal leg with one hand while the other hand holds the heel with the ankle in neutral position. The heel is inverted with respect to the tibia. It is important to hold the talus and calcaneus as one unit to prevent excessive subtalar movement. Pain in the area of the ligament or a sensation of clunk would indicate a positive test. An outward translation in excess of 5 degrees on the injured side compared to the uninjured side, or a spongy or indefinite end feel indicate a complete tear of CFL.

3. Eversion stress test[1]

It assesses the integrity of the deltoid ligament and is also know as the Eversion Talar Tilt test.

Procedure: The patient is positioned similar to the Inversion stress test. The examiner everts and abducts the heel while stabilizing the distal tibia. The test is performed on both the sides. An increased laxity and pain on the injured side in comparison to the uninjured side would indicate a positive test. A spongy or indefinite end feel is indicative of a complete tear.

Reliability and Validity of ligament tests

1. Sensitivity values for the Anterior Drawer test have been shown to be between 32% to 80% while specificity value has been reported as 80%.[6]

2. A positive drawer test done 5 days after the injury, has been shown to be more sensitive and specific than the test done withing the 24-48 hours.[7]

3. A sensitivity of 52% has been reported in a single study for the inversion talar tilt test. [8]

4. In acute injuries, the eversion stress test may be of limited clinical value. However, the accuracy of the test when done after 5 days of injury increases to 96% sensitivity and 84% specificity.

References

  1. 1.0 1.1 1.2 1.3 1.4 Aslan A, Sofu H, Kirdemir V. Ankle Ligament Injury: Current concept. OA Orthopaedics. 2014 March 11; 2(1):5
  2. Chan KE. Acute and Chronic Lateral Ankle Instability in the Athlete. Bulletin of the NYU hospital for joint diseases. 2011;69(1):17-26
  3. Ross SE, Guskiewicz KM, Gross MT. Assessment tools for identifying functional limitations associated with functional ankle instability. Journal of athletic training. 2008 Feb;43(1):44-50.
  4. 4.0 4.1 4.2 Lynch S. Assessment of the injured ankle in the athlete. Journal of Athletic training. 2002 Dec;37(4):406-412
  5. Stufkens SAS, van den Bekerom MPJ, Knupp M, Hintermann B, van Dijk CN. The diagnosis and treatment of deltoid ligament lesions in supination-external rotation ankle fractures:a review. Strat Traum Limb Recon. 2012 July 6;7:73-85
  6. van Dijk CN, Lim LS, Bossuyt PM, Marti RK. Physical exam is sufficient for diagnosis of sprained ankles. Journal of bone and joint surgery. 1996;78(B):958-962.
  7. Kaminski TW, Hertel J, Amendola N, Docherty CL, Dolan MG, Hopkins JT, et. al. National Athletic Trainer's association Position Statement: Conservative Management and Prevention of Ankle sprains in Athletes. Journal of Athletic Training.2013;48(4):528-545
  8. Blanshard KS, Finaly DB, Scott DJ, Ley CC, Siggins D, Allen MJ. A radiological analysis of lateral ligament injuries of the ankle. Clinical Radiology. 1986;37(3):247-251
