The effectiveness of core stability exercise with regards to general exercise in the management of chronic non specific low back pain

Introduction

lowerleftbackpain.info/wp-content/uploads/2012/09/lower-back-pain.jpg
Low back pain is an extremely common patient complaint with approximately 80% of the World population developing low back pain at some point[1]. 1/3 of the UK population will experience back pain each year[2]. It is the main cause of years lived with disability[3]. It is among 10 of the leading reasons for patient visits to medical facilities.[4] Non-specific low back pain is tension/soreness and or stiffness in the lower back region whereby it is not possible to find a cause for the pain[2]. Most cases resolve fairly quickly, but a significant number of patients develop chronic lower back pain. Patients experience unremitting pain and often become functionally impaired. Chronic LBP represents a greater financial burden in the form of direct costs resulting from loss of work and medical expenses, as well as indirect costs[5]

Prevalence

Generally there is a scarcity of information on the prevalence and incidence of chronic low back pain, partly due to lack of agreement about its definition. Chronic low back pain is mostly defined as persistent pain occurring on most days and lasting longer than 3 months[6][7][8]. Others also define it as pain exceeding normal healing times and frequently reoccurring back pain over long periods. Acute and chronic LBP warrant separate consideration as they may respond differently to the same interventions[9][10].

Causes

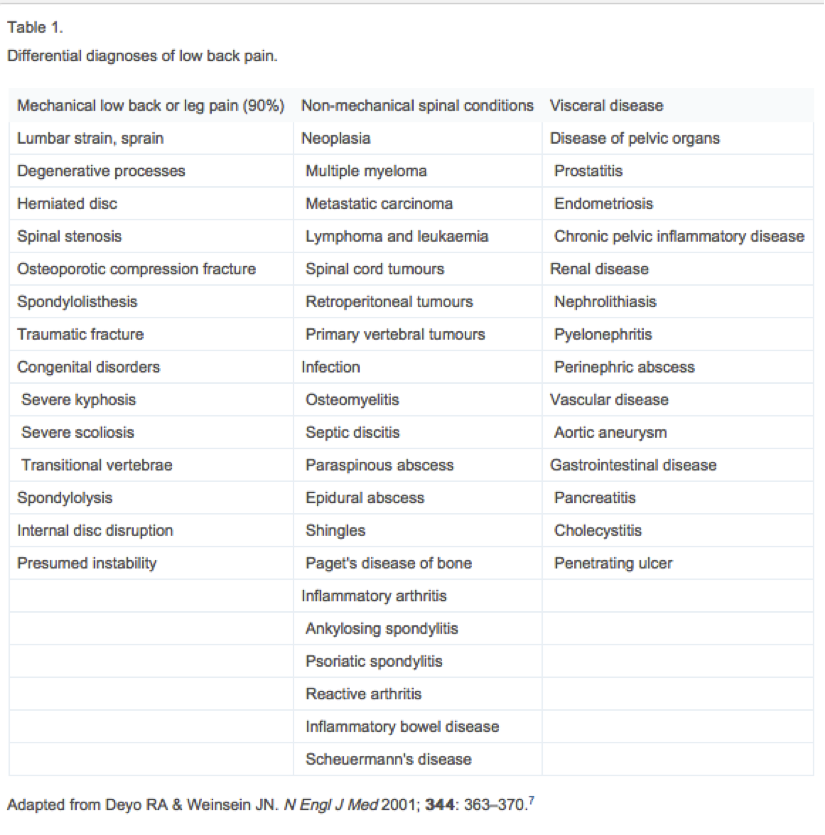

Mechanical disorders are the cause in 90% of cases with the remaining 10% of cases being due to manifestation of systemic illness[11]. Despite a large number of pathological conditions that give rise to low back pain cases, 85% are without pathoanatomical or radiological abnormalities[1]. Most episodes of low back pain resolve quickly and are not incapacitating, nonetheless, pain and disability are often ongoing and recurrences are common[12]. It is estimated 10 to 20% of affected adults develop symptoms of chronic low back painback-pain[13].

40

Risk Factors

Many different patient characteristics have been described that predict who is at risk of developing chronic LBP. However, only a few have been replicated consistently in multiple studies. These include increasing age, previous back pain, job dissatisfaction, pain below the knee and depression.[14][15][16] Depression has long been noted to be associated with various chronic pain syndromes, and several studies have reported it’s relationship with chronic back pain in particular in multiple studies[16]. Women are more commonly affected with LBP and some studies show increases in chronic LBP[15]. Thomas et al. (1999) found that persistent back pain was associated with “premorbid factors” such as poor baseline functional status, high levels of psychological stress, poor self-rated health, low levels of physical activity, smoking and obesity[17]. Smoking has been found in multiple epidemiological studies to be a risk factor for the development of chronic low back pain[18].

Prognosis

The longer the patient suffers from back pain the worse the prognosis. The chance of low back pain resolving is its highest during the first week[14]. By the end of year one that chance diminishes significantly. In Van den Hoogen et al. 1998's study on the course of low back pain, 35% patients had pain at 12 weeks and 10% of patients had pain at 1 year.[19] Thomas et al. 1999 reported similar outcomes at 1 year with 10% of patients complaining of the same back pain form the first episode[17]. Carey et al. 2000 found that 2/3 of patients with chronic low back pain at 3 months still had functionally disabling symptoms at 22months and only 16% of patients became symptom-free[20]. Most patients on disability for more than 6 months will not return to work. The number of patients returning to work approaches zero at 2 years[14]. Once established, chronic low back pain is persistent and achieving complete remission becomes less likely as time goes by. The question remains how to treat chronic low back pain, and can you prevent it from occurring in the first place?

Core Stability

Many authors have attempted to define core stability, which consequently means a globally accepted definition is yet to be confirmed[21]. However, a widely accepted definition of core stability is:


“Comprises of the lumbopelvic-hip complex and is the capacity to maintain the equilibrium of the vertebral column within its physiologic limits   by reducing displacement from perturbations and maintaining structural integrity.”[22][23][24][25][26]

The first acknowledgment of core stability was by Henry and Florence Kendall who were both Physiotherapist's and first developed the idea of a “neutral pelvis” in 1940/1950’s[27]

They initially suggested that the surrounding superficial muscle groups were responsible for the maintenance of alignment and of “neutral spine”. The muscles they were referring to were the erector spinae, hamstrings, abdominals, and the hip flexors. Following on from this, it was suggested that pelvic tilt was pelvic movement deviating from the neutral position.

Over the years, the concept of core stability has changed and authors such as Paul Hodges have highlighted the significance and contribution of the Transverus Abdominus muscle, especially in lumbopelvic stability. Upon this basis, it has now become an important part of the management of spinal stability and exercises orientated upon the activation, recruitment, and strengthening of the core are a common avenue of treatment[28]

Theories and Applications

In an attempt to add some clarity to the phenomena of the stabilisng system of the spine, Panjabi proposed a classification model that offered an explanation into the functioning of the spine. His model consisted of three categories[29]Active, Passive and Neural and the evident importance of core stability can be seen.

Passive

The passive category consists of the basic components of the spine which allow for soft tissue attachment[29].

  • The lumbar vertebrae
  • The joint capsules
  • The intervertebral disc
  • Ligaments surrounding the area

These structures of the spine do not contribute to any significant spinal stability in the neutral alignment. The skeletal structure does support the basic framework and the tensile properties in the various ligaments do start to resist end range movement, however, do not have the capability to produce forces that initiate spinal movement is not caused by the passive structures.

Active

The active structures hold responsibility for the initiation of gross spinal movement as well as providing contributing to spinal segmentation.
Bergmark (1989) further classified the active system into the local and global stabilising system[30]. The local globalising system was slated to have a primary role in the maintenance of spinal segment stability and stiffness. The global stabilising system was stated to be more superficial and with a primary function to generate force to control movement, there is often eccentric contractions to control motion segments throughout the range

Global Mobilisers

A further active functional classification was suggested by Comerford and Mottram (2001)[31]. They have proposed the idea of “global mobilisers”. The primary role of these muscles is for shock absorption and to generate the gross spinal concentric contractions required for gross motor function.

Neural

The neural component, according to Punjabi, is responsible for receiving information from the various transducers and relaying the relative signal onto the active system to achieve segmental stability. Until sufficient stability has been achieved, the neural components continue to control the active systems.

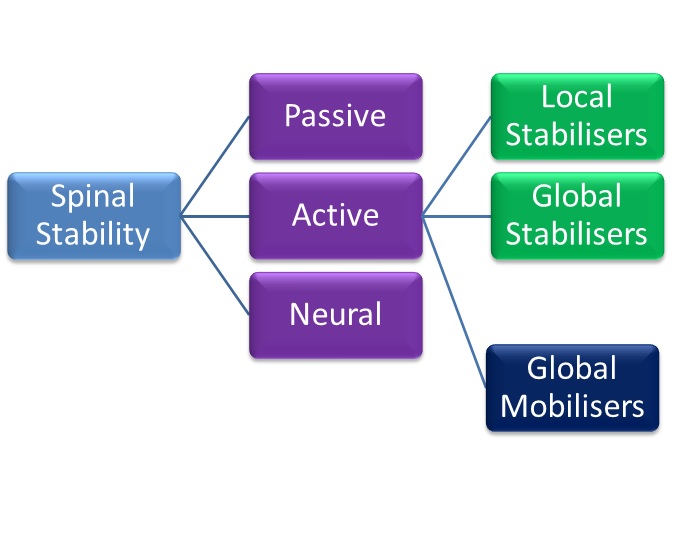

Figure 1.

model showing the relationship between the three models proposed by Punjabi (1992), Comerford and Mottram's (2001) and Bergmark (1989), which influence "spinal stability"[31][30].

Spinal assessment types.jpg

Figure 2.

A table proposed by Norris (2008), identifying the different characteristics between the stablisers and mobilisers[32].

Spinal assessment 2.png[32]

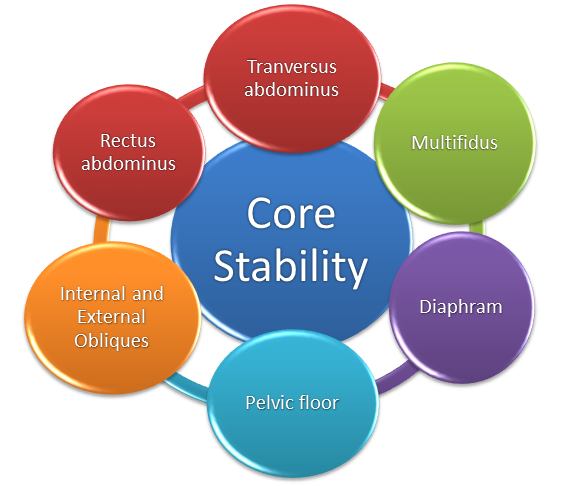

Relevant Anatomy


Spinal assessment 4.png

[33]

Physiology

It has been stated that core is characterised by “Proximal stability for distal mobility” [34][35]. When contracting, the primary role of the core stability muscles is to raise the intra-abdominal pressure and to increase the tension in the thoracolumbar fascia. The increase in intra-abdominal pressure stiffens and strengthens the relevant structural support around the spine, compacts the arthrogenic structures and in combination with abdominal contraction, it can encourage a rigid cylinder and stiffness to occur around the spine[36]. This gives the spine a relative degree of stability which is needed to facilitate superficial muscle activation and gross motor action.
Timothy 4.JPG
Timothy 2.JPG
Timothy 1.JPG

Core Stability Functions

  • Anticipatory postural adjustments – pre-programmed muscle activation which helps the body to anticipate the subsequent force
  • To create interactive moments that help to control the exposure of force and loading that is applied to a joint
  • To help in force control throughout the various locations in the body

[33]

Typical Core Exercises

A lumbopelivic stability programme is constructed in three sections[37].

  • Section 1 - Entails segmental control and active recruitment over global mobilisers - specifically transversus abdominus, pelvic floor, and diaphragm
  • Section 2 - Whilst maintaining segmental control and activation, introducing closed chain exercises, with low velocity and low load.
  • Section 3 - Whilst maintaining segmental control, introducing open-chain exercises with high velocity and load. Movement of adjacent body segments can be used to stress the core structures
Many of the specific exercises listed below have been proven to significantly increase general health, sports functioning, and significantly decrease in pain[38].

Phase 2

Bridging

Single Leg Fall Out

Single Leg Extension in Supine

Basic 4 Point Kneeling

Advanced 4 Point Kneeling



The modified one leg stretch: Crook lying, slide one leg away as far as possible and then return to start position.
The modified shoulder bridge: Crook lying, “peeling” the bottom off the mat. Progression: Increase the range of movement (more of the spine away from the mat).
Swimming (a modification from a four point base): Box position, slide one foot along the floor behind, return to the start position. Repeat on other leg.

Phase 3.

 Bridging Progression Onto a Pilates Ball

Pilates Ball Plank

Recent Evidence

The European Guidelines have stated that the following are recommended in the management of chronic non-specific low back pain: cognitive behavioural therapy, exercise therapy and educational therapy[39]. When searching the literature, studies only compared core stability exercise with general exercise therapy out of the European Guidelines recommendations.

Pain and function were selected as outcome measures to determine the effectiveness of core stability exercises as these were the consistent outcome measures in the evidence and have been shown to be a major factor of the psychosocial well-being of patients[40] [41]

Evidence For

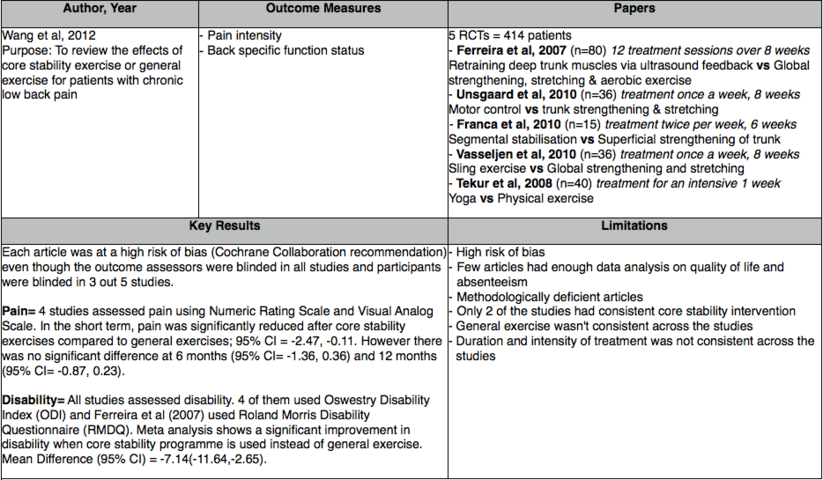

Table 1 Core Stability.png

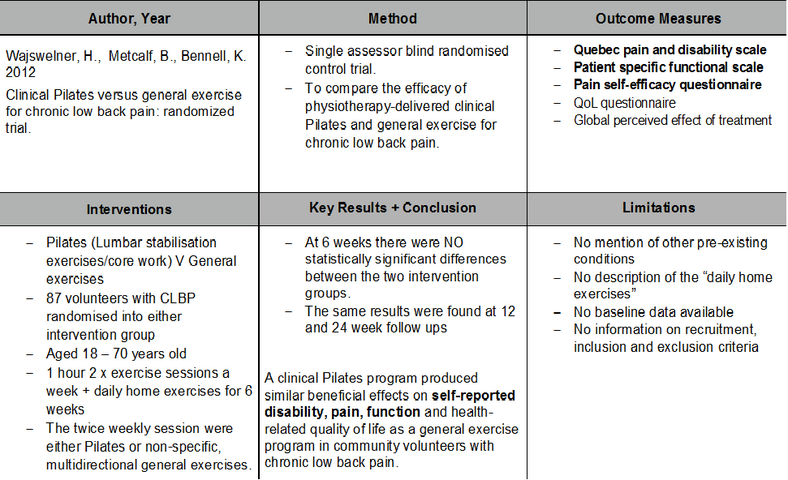

Evidence Against

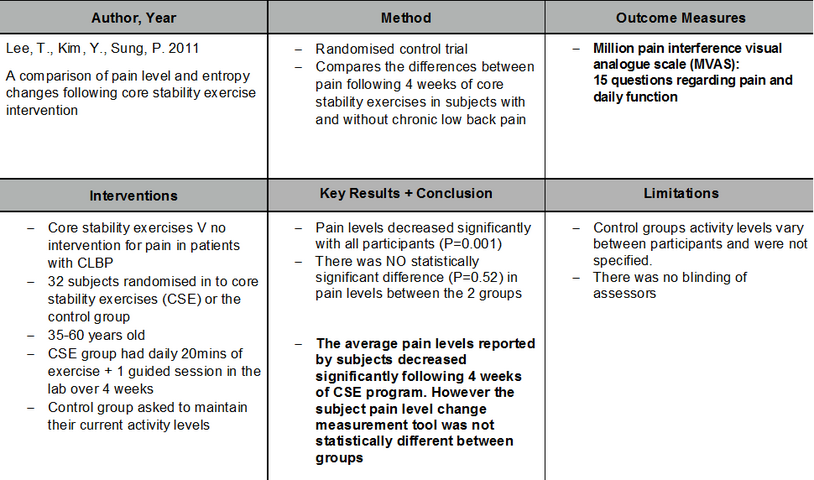

Core exercises for clbp 1.png Core exercises for clbp 2.png

Conclusion

The meta-analysis showed core stability exercise has significant improvement in both pain and function compared to general exercise for patients with chronic low back pain. However, these findings were only significant in the short term. In contrast, evidence published since this meta-analysis has found no significant difference between core stability and general exercises neither short term nor long term even though both interventions did improve pain and function. It should be noted though that no study reported adverse effects from core stability exercise when compared to general exercise with respect to pain and function.

In conclusion, these findings show that clinicians have a choice to either administer core stability exercise or general exercise when a patient has chronic non-specific low back pain. Core stability exercise can be used as an alternative to general strengthening and stretching if the patient is more suitable and if it would encourage compliance. However, clinicians should not expect a significant improvement by choosing core stability in regards to pain and function, especially in the long term.

Limitations

The wealth of literature available compared core stability exercises to general exercise. Although there is literature to support the use of other therapies e.g. CBT, mobilisations, and pharmacology they have not been compared directly to core stability exercises. Therefore further research is required in these areas.
