Extra-Corporeal Membrane Oxygenation

Original Editor - Saud Alghamdi Top Contributors - Saud Alghamdi, Kim Jackson and Ewa Jaraczewska

Introduction[edit | edit source]

In 2022, it is estimated that nearly 200,000 patients received Extra-Corporeal Membrane Oxygenation (ECMO).[1] ECMO is a technique that oxygenates the blood outside the body. It’s typically used when conventional ventilation is unable to oxygenate the blood adequately.[2]

It is important to understand that ECMO is a supportive therapy, not a disease-modifying treatment.[3] Similar to a ventilator or a dialysis machine, ECMO doesn't cure the underlying disease but takes over a vital function (oxygenation or blood circulation) when the body's organs are unable to do so adequately.

ECMO is a highly specialised technique that requires the input of intensive care specialists, cardiothoracic surgeons as well as ECMO-trained nurses and perfusion scientists.[2]

How Does ECMO Work[edit | edit source]

ECMO is a technique that oxygenates the blood outside the body. It’s typically used when conventional ventilation is unable to oxygenate the blood adequately.[2]

In ECMO, the blood is drained from the vascular system, circulated outside the body by a mechanical pump and then reinfused into the circulation. While the blood is outside the body, hemoglobins become fully saturated with oxygen and carbon dioxide (CO2) is removed from them. [4]

Types of ECMO[edit | edit source]

There are two types of ECMO. Veno-arterial (VA) ECMO can be used for heart and lung support, while veno-venous (VV) ECMO is used for lung support only.[5]

VA-ECMO[edit | edit source]

VA-ECMO drains the blood from the venous system, reinfuses it into the arterial system and provides complete cardiopulmonary support. [5]

VV-ECMO[edit | edit source]

VV-ECMO drains the blood from the venous system, reinfuses it into the venous system and provides gas exchange. Unlike VA-ECMO, VV-ECMO does not provide direct cardiac support.[5]

Benefits of Physiotherapy for Patients on ECMO[edit | edit source]

Early implementation of physiotherapy interventions for patients on ECMO offer a range of benefits, including:

  • Mortality Rate: There is some evidence supporting that there is a significant decrease in mortality in ECMO patients who undergo physiotherapy interventions. [6]
  • Length of Hospital Stay: Strong evidence to suggest that physiotherapy interventions for ECMO patients result in significant reduction in hospital and/ or ICU length of stay.[6]
  • Intensive care unit-acquired weakness (ICU-AW): Early Physiotherapy input for patients on ECMO can result in better outcomes regarding ICU-AW.[6] [7]
  • Respiratory Function: Physiotherapy input can improve respiratory function, secretion clearance and promote pulmonary recovery for patients on ECMO.[6][7]

Is Physiotherapy Safe for Patients on ECMO?[edit | edit source]

A 2019 systematic review found that physiotherapy interventions including early ambulation for patients on ECMO is considered safe due to the absence of severe adverse events and the small number of mild adverse events. [6] Of the 259 patients who underwent physiotherapy interventions, only 4 patients presented with adverse events. One study reported two complications from femoro-femoral cannulation with one patient presenting with severe leg swelling and another with an obstructive thrombus in the return cannula. One study reported a cannula fracture during physiotherapy mobilisation and one study reported a decrease in peripheral oxygen saturation that was sufficiently compensated for by increased blood flow during ECMO. [6]

Implications for Clinical Practice for Physiotherapists[edit | edit source]

Implementing physiotherapy interventions for ECMO patients should be a highly personalised approach. The selection of appropriate exercises should be individualised for each patient according to their consciousness level, functional status and disease severity.[7] Furthermore, the functional level of ICU patients is strongly determined by their pre-ICU admission functionality. Therefore, physiotherapists should aim to obtain a baseline functional assessment to assist them in providing optimal care.

Physiotherapy Management / Interventions[edit | edit source]

--

Exercise[edit | edit source]

Based on the available evidence from two recent systematic reviews, active physiotherapy is not only safe but should be a priority. The 2019 systematic review outlined that the physiotherapy interventions included active-assisted exercises, sitting, standing, passive mobilization, resistance exercises, positioning in bed, stretching and functional electrical stimulation (FES) of the lower limb muscles combined with cycling. Additionally, in 11 out of 19 studies (93 patients out of 259 total patients), patients on ECMO were mobilised and their physiotherapy intervention involved walking.[6]

This was later supported in 2022 by another systematic review whereby cycling and strength training appeared to be the most commonly used types of exercises.[7] Additionally, there was a mention of neuromuscular electrical stimulation (NMES). NMES has been shown to, increase muscle thickness, improves microcirculation, increase oxygen consumption and reperfusion, and prevent patients from muscle atrophy. [7] However, with that said, there is only one study that investigated the application of NMES in patients on ECMO, four ECMO patients were put on 30 minutes session of NMES followed by a sham NMES session after. NMES was well tolerated by the patients and showed promising results. However, due to the extremely limited data on NMES as an alternative to exercise in ECMO patients, more randomised controlled trials are needed.

Prone Positioning[edit | edit source]

Prone Positioning (PP) is a strategy to improve the outcomes of ARDS patients. However, due to organizational issues and a lack of experience and appropriate medical literature, PP is generally not applied to ECMO patients.[8] In fact, a 2021 study suggested that PP was only used in 15% of ECMO patients. [9] Recently there has been an increase in reports showing that PP in ECMO patients is associated with a reduction of hospital mortality. [10] [11] These findings were later supported by a 2022 systematic review and meta-analysis where it showed that PP in ECMO patients was associated with significant improvements in survival rates compared to supine positioning of ECMO patients. [8]

Contraindications of Prone Positioning[edit | edit source]
  • Unstable spinal fractures (An absolute contraindication). [9]
  • Hemodynamic instability. [9]
  • Unstable large bone or pelvic fracture.[9]
  • Open abdominal wounds.[9]
  • Increased intracranial pressure, or a risk of intracranial hypertension without adequate intracranial pressure monitoring.[9]

Verticalisation Therapy[edit | edit source]

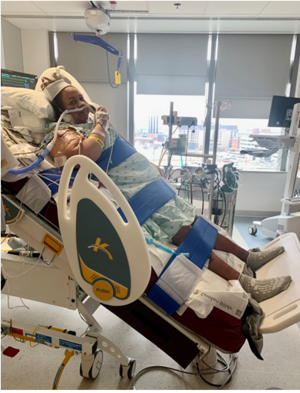

ICU patient undergoing Verticalisation Therapy via a Kreg Therapeutics' Catalyst bed

Verticalisation therapy (VT) is emerging as a valuable tool in for ECMO patients in ICU settings, potentially offering two key benefits for patients:

Improved lung volume and oxygenation: To date, we are only aware of 1 case study from 2023 that have specifically looked at VT as treatment option to improve lung volume and oxygenation in an ECMO patient.[12] In this study, the patient was able to sustain an oxygen saturation above 90% for approximately up to 3 hours after each VT session without any changes to the ventilator or ECMO settings.[12] Furthermore, VT has been shown to result in a rapid and significant increase in lung volume and oxygenation in mechanically ventilated ARDS patients.[13]

Initiating weight-bearing: VT has also been used to initiate weight-bearing and mobility.[14] [15] Potentially playing an essential role in maximising the outcomes of those who need graded transition from bed rest to full weight-bearing. [16] Furthermore, some reports have highlighted that weight-bearing through VT may be an excellent option when trying to avoid hip flexion. This is particularly advantageous when there is an increased risk of damage to the ECMO cannulas. [15]

PP has been associated with adverse events in ECMO patients, most notably pressure ulcers and inadvertent decannulation. [12] Whilst the incidence of such adverse events are low, PP for ECMO patients is a challenging procedure that may be associated with more complications when performed in ECMO centres without specialist expertise and training. [10] VT when available may be a better choice of positioning as not only is it associated with better oxygenation, but can also be a stepping stone for better functionality later on as it promotes early weightbearing.
