Iliocostalis Lumborum

Original Editor - Oyemi Sillo

Lead Editors - Vidya Acharya, Oyemi Sillo and Evan Thomas


Description

Iliocostalis Lumborum is the most inferior and lateral of the erector spinae muscles.

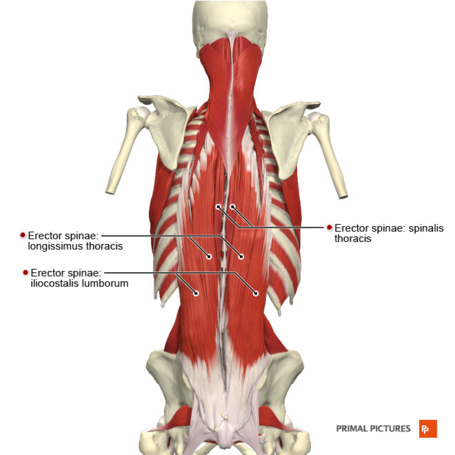

iliocostalis lumborum

Anatomy

Origin

  • Anterior surface of a broad and thick tendon w attached to the medial crest of the sacrum,
  • Spinous processes of the lumbar vertebrae,
  • 11th and 12th thoracic vertebrae,
  • Posterior part of the medial lip of iliac crest, supra-spinous ligament and the lateral crest of sacrum[1].

Insertion

By tendons into inferior borders of the angles of the lower 6 or 7 ribs[1]

Nerve Supply

Dorsal rami of thoracic and lumbar spinal nerves (T7 to L3)[2]

Blood Supply

Dorsal branches of the lumbar arteries from the aorta. Dorsal branches of the lateral sacral artery from the internal iliac artery.[2]

Muscle Fibre

Characterised by Type 1 muscle fibre, indicating the tonic holding and stabilisation function.[3]

Action

  • Extension of Spine: Acting bilaterally, extension and hyperextension of the spine. Acting unilaterally, laterally flexes the spine[4]
  • Respiration: It assists as an accessory muscle of expiration, due to its insertion on the ribs[5]
  • Stabilization of Spine: Iliocostalis lumborum along with multifidus contribute to support and control the orientation of lumbar spine.[3]

Clinical Relevance:

  • Myofascial pain[6] of Iliocostalis Thoracis- Lumborum muscle causes anterior torso pain. The pain of myofascial origin is a well-recognized pathology characterized by the presence of two components: referred pain; which is often distant from its source and specific to each muscle, and the trigger point, a localized hyperirritable band present in the affected muscle and able to reproduce the referred pain when stimulated. The most common locations of pain were the right-lower quadrant and the left side of the chest. Unsurprisingly, since the referred pain of myofascial pain of the Iliocostalis muscle is located at the frontal aspect of the torso (chest, abdomen, and pelvis), it is a clinical challenge even to seasoned clinicians. The anterior torso pain often results in extensive workups before Iliocostalis Lumborum myofascial pain diagnosis is made. Trigger point injections are diagnostic and therapeutic of Iliocostalis Thoracis-Lumborum myofascial pain.
  • Investigative studies like EMG[7] have shown the involvement of Iliocostalis Lumborum along with external obliques in Pisa Syndrome, which is defined as a reversible lateral bending of the trunk with a tendency to lean to one side[8]. This is a frequent and often disabling complication of Parkinson's disease. As some forms of Pisa syndrome are potentially reversible, there is growing consensus on the importance of its early recognition and the importance of pharmacological adjustment and rehabilitation.[9]

Assessment[1]

Power

Position: Prone with hands clasped behind buttocks or head.

Fixation: Examiner must stabilize the legs firmly on the table.

Test: Trunk extension

Pressure: If performed with hands behind back no pressure is needed.

Weakness

Bilateral weakness of low back muscles results in a lumbar kyphosis and increased thoracic kyphosis.

Unilateral weakness results in lateral curvature with convexity towards the weak side.

Length

Bilateral contracture of low back muscles results in lordosis.

Unilateral contracture results in scoliosis with convexity to the opposite side.

Treatment

Strengthening exercises:

1. Prone extension exercise[10]:

a) In prone lying, have the patient tuck in the chin and lift the head, thorax of the plinth.

b) To progress further, the patient can vary the arm position. Resistance can be added by using hand-held weights.

c) Patient can further progress by lifting one leg off the mat alternately, and progress to both legs simultaneously.

d) Further progression can be made - spine extension with both upper limbs and lower limbs lifted off the mat.

2. Prone exercises on a stability ball.

3. Plank and quadruped exercises to develop control and strength in spinal extensors.

4.Postural exercises.

Stretching exercises:

Trunk lateral bending exercises to the opposite side of tightness and flexion exercises help in stretching the tight muscles.
