Achilles Tendon

Anatomy

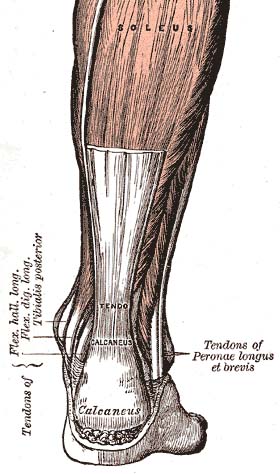

Achilles tendon.jpg

The Achilles (calcaneal) tendon is a common tendon shared between the gastrocnemius and soleus muscles of the posterior leg. It connects the two muscle groups (collectively, triceps surae) to the calcaneus. Generally, the tendon winds 90 degrees on its path towards the heel, such that the gastrocnemius attaches laterally and the soleus attaches medially.[1] It is the thickest tendon in the human body and has the capacity to withstand large tensile forces.[2]

A subcutaneous calcaneal bursa permits movement of the skin over the flexed tendon. A deep bursa of the Achilles tendon reduces friction to allow free movement of the tendon over the bone.[1]

Attachments

The tendon provides a distal attachment site for the gastrocnemius (lateral and medial heads) as well as the soleus muscles. It inserts onto the posterior surface of the calcaneus (heel bone). The plantaris tendon also fuses with the medial side of the Achilles tendon proximal to its attachment site.[3]

Function

Through the action of the triceps surae, which raises the heel and lowers the forefoot, the Achilles tendon is involved in plantar flexion of the foot (approximately 93% of the plantar flexion force).[1] The contraction of the gastrocnemius and soleus muscles result in a translational force through the Achilles tendon that results in plantar flexion of the foot. This action is very significant in human locomotion and propulsion responsible for actions such as walking, running and even jumping.[2][4] Also, these motions exert the greatest load on the Achilles tendon, with tensile loads up to about ten times the body's weight. The anatomy of the tendon provides for both elasticity (recoil) and shock-absorbance in the foot.[1] It is the largest and strongest tendon in the human body and is capable of supporting tensional forces produced by movement of the lower limb.[5]

Blood Supply

The Achilles tendon has its blood supply from longitudinal arteries which course the length of the tendon from two main blood vessels[6]:

  1. Posterior tibial artery: Which supplies the proximal and distal sections.
  2. Peroneal artery: Which supply the middle section.

The tendon has a generally poor blood supply throughout its length, as measured by the number of vessels per cross-sectional area.[2] In addition, a relative region of hypovascularity exists in its midsection which usually happens to be the site around which most injuries occur. This has been attributed as a contributing factor to diminished healing after trauma.[2]

Overall, the tendon has a relatively poor blood supply throughout its length, as measured by vessels per cross-sectional area. Also, there is a relatively hypovascular area in the midsection, which correlates to the location of many injuries: the area approximately 2 to 6 cm from the tendon's insertion point. Some have also suggested that poor vascularity contributes to diminished healing after trauma. Blood supply to the tendon also diminishes with age.

Innervation

The Achilles tendon is innervated by nerves of the muscles from which it is formed and cutaneous nerves. the sural nerve particularly plays a major role in its innervation with a smaller supply from the tibial nerve.[7] The nerve endings form a longitudinal plexus which supplies afferent fibres in the great majority of the tendon. [8] The afferent receptors are largely located close to the osteotendinous junction and have all four types of receptors which are the type I, II, III, IV receptors (Ruffini corpuscle pressure receptors, Vater-Paccinian corpuscle sensitive to movement, Golgi tendons mechanoreceptors and free nerve endings that serve as pain receptors). [7]

Pathology/Injury

The Achilles tendon is susceptible to damage with repetitive use or overload. These types of injuries typically occur in athletes and are usually sports or exercise-related.[5]

The most common types of injuries are due to overuse and Achilles Tendon disorders, of which 55%-65% are diagnosed as Achilles Tendinopathy. Insertional issues (Retrocalcaneal Bursitis and Insertional Tendinopathy) account for 25%-35% of cases, with the remaining diagnosed as partial tears or undiagnosed complete ruptures.[5]

Complete Rupture of the Achilles Tendon has been estimated to occur at a rate of 5.5 to 9.9 per 100,000 in North America and between 6 to 18 per 100,000 in Europe.[9] Roughly 60-75% of ruptures take place in sporting activities, including basketball and soccer.[5]

Clinical Examination

Palpation

The foot is plantar flexed against resistance or gravity (body weight) while observing the posterior leg.

Examination

Achilles Tendinopathy

  • Palpation and physical examination
[10]


  • The VISA-A is a self-administered questionnaire that evaluates symptoms and their effect on physical activity for patients with chronic Achilles tendinopathy.

Achilles Rupture

  • The Matles Test is a visual diagnostic test for suspected Achilles Tendon Rupture.
[11]


  • The Thompson Test is used to identify the presence of a complete Achilles Tendon Rupture and is performed by squeezing the calf.
[12]


Physiotherapeutic Techniques

Achilles Tendinopathy

A summary of treatment interventions for Achilles Tendinopathy can be found in the Achilles Tendinopathy Toolkit.

Achilles Rupture

Optimal treatment of acute Achilles Rupture is a highly contested topic[13], but can be broken down into:

  • Open Operative
  • Percutaneous Operative
  • Nonoperative Types.[5]

If a physician advocates for a non-surgical approach, the foot is typically placed in a cast or splint, such that it is held in plantar flexion. This treatment can be combined with early physiotherapy.[14]

More recently, evidence-based guidelines for managing Achilles Tendon Rupture have been released by the American Academy of Orthopaedic Surgeons (AAOS). None of the recommendations have a grading of "strong", but consensus recommendations based on expert opinion advocate the need for a detailed patient history and physical examination in diagnosis.[9][13] The group also recommends a more cautious approach in operative treatment for certain patients, including those with diabetes and/or neuropathy, aged 65 or older, who are obese or who have sedentary lifestyles, who are immuno-compromized, and who use tobacco.[9] The only recommendations rated as "moderate" in strength (fair quality evidence) were specifically for post-operative interventions. These were the suggestions for:

  1. Protective weight bearing and
  2. Use of a protective device that allows mobilization 2-4 weeks post-operatively.[13][9]

A review on the topic advocates for educating patients on the potential risks and benefits of each type of treatment, including operative and nonoperative types.[13]

Healing

A meta-analysis of randomized trials of Achilles tendon rupture repair has suggested that a nonoperative approach, in which plantar flexion is used to produce tendon apposition, can allow adequate healing. Functional bracing and modified postoperative mobilization, including daily active plantar flexion exercises, may stimulate tendon healing and reduce the potential rate of re-rupture.[14]

Resources

  A review of the literature to evaluate the efficacy of conservative eccentric exercise for Achilles tendinopathy.

  AAOS Guideline and Evidence Report: The Diagnosis and Treatment of Acute Achilles Tendon Rupture (2009)
