Description

Gastrocnemius

The gastrocnemius muscle is a complex muscle that is fundamental for walking and posture. Gastrocnemius forms the major bulk at the back of lower leg and is a very powerful muscle. It is a two joint or biarticular muscle and has two heads and runs from back of knee to the heel. The definitive shape of the calf is as a result of the medial and lateral heads of the gastrocnemius, which are situated at the posterior, upper half of the lower leg. With the soleus and plantaris, they form a composite muscle called the triceps surae. The two heads of the muscle form the lower boundaries of the popliteal fossa.The gastrocnemius muscle is superficial, can be easily seen and can be touched on the back of your lower leg.

Anatomy

Origin

Popliteal Fossa

The two heads are located from the medial and lateral condyles of the femur.

• The medial head from behind the medial supercondylar ridge and the adductor tubercle on the popliteal surface of the femur.
• The lateral head from the outer aspect of the lateral condyle of the femur, just superior and posterior the lateral epicondyle.The fabella is an accessory ossicle most always found in the lateral head of the gastrocnemius.
• Both heads have attachments from the knee joint capsule and from the oblique popliteal ligament.

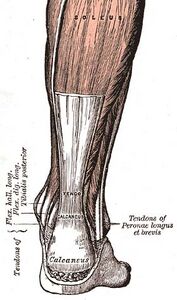

Insertion

•

  Achilles Tendon
  The bulk of the gastrocnemius muscle from each of the heads come together and insert into the posterior surface of a broad membranous tendon.
• It then fuses with the soleus tendon to form the upper part of tendocalcaneus.
• This broad tendon then narrows until it reaches the the calcaneous where it expands again for its insertion on the middle part of the posterior surface of the calcaneus.

Nerve supply

• Both heads of the gastrocnemius is supplied by the tibial nerve (S1 and 2).
• Cutaneous supply is mainly provided by L4, 5 and S2.

Function

The gastrocnemius with the soleus, is the main plantarflexor of the ankle joint. The muscle is also a powerful knee flexor. It is not able to exert full power at both joints simultaneously, for example when the knee is flexed, gastrocnemius is unable to generate as much force at the ankle. The opposite is true when the ankle is flexed.

When running, walking or jumping the gastrocnemius provides a significant amount of propulsive force. Consider the amount of force required to propel the body into the air, triceps surae can generate a lot of force.

The gastrocnemius muscle tension has many fascial connections, and this tension is transmitted not only to the foot but to the knee, hip, and lumbar area. A shortened gastrocnemius muscle could cause dysfunctions to the physiological movements of the hip, decreasing its anteversion (inward rotation of the femur). The fascial system plays a fundamental role in the transmission of the force produced by the contraction of the contractile component of the muscle.

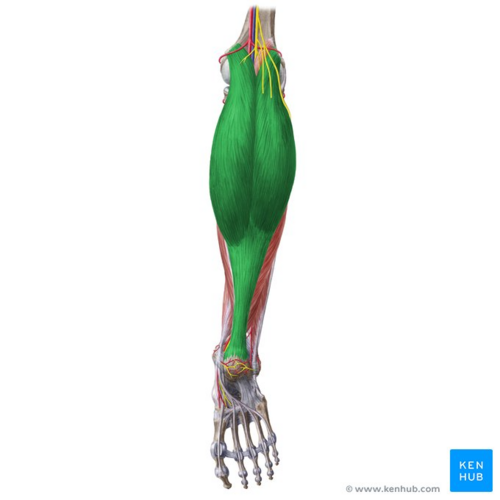

Image: Gastrocnemius (highlighted in green) - posterior view

Assessment

Palpation

• At the posterior aspect of the knee joint, the two large muscle bellies of gastrocnemius can be felt on either side of the upper portion of the calf. The medial head is projects higher and is lower than the lateral.
• Both can be felt joining the tendinous junction.
• Further down the calf is the flattened tendocalcaneus which can be palpated to its insertional attachment at the posterior surface of the calcaneus.

Power

• Ankle plantarflexion in long-sitting (consider that gastrocnemius works against full body on a daily basis).

• Double/single leg calf raise
• Straight leg jump
• Functional tasks (steps, etc.)

Length

• Passive dorsiflexion
• Body-weight lunge, measure the straight back leg.

Treatment

Weakness

1. Non-weight bearing and basic weight bearing exercises such as theraband exercises, double and single leg calf raises.
2. Weight-bearing exercises and gradually progresses stability exercises by (i) increasing load (ii) increasing the repetitions (iii) varying surface, for example introducing a wobble board
3. Sport-specific movement patterns such as running, jumping, and bounding.

Stretching Exercises

In order to get effective gastrocnemius stretch, the knee must be in extension while the ankle is dorsiflexed.

Patient position and procedure

• Long-sitting (knees extended) or with the knees partially flexed.
• Instruct the patient to strongly dorsiflex the feet, attempting to keep the toes relaxed.

Patient position and procedure

• Long-sitting and with a towel or belt looped under the forefoot.
• Instruct the patient to pull with equal force on both ends of the towel to move the foot into dorsiflexion

Patient position and procedure

• Standing.
• Instruct the patient to stride forward with one foot, keeping the heel of the back foot flat on the floor (the back foot is the one being stretched).
• Have the patient brace his or her hands against a wall if necessary. To provide stability to the foot, the patient partially rotates the back leg inward so the foot assumes a supinated position and locks the joints. The patient then shifts body weight forward onto the front foot.
• To stretch the gastrocnemius muscle, the knee of the back leg is kept extended. (To stretch the soleus, the knee of the back leg is flexed.)

Patient position and procedure

• Patient must be standing on an inclined board with feet pointing upward and heels downward.
• Greater stretch occurs if the patient leans forward. Because the body weight is on the heels, there is little stretch on the long arches of the feet.

Precaution must be followed when a patient uses weight-bearing exercises to stretch the plantarflexor muscles, shoes with arch supports should be worn or a folded washcloth placed under the medial border of the foot to minimize the stress to the arches of the foot.

Trigger Points

The gastrocnemius may contain up to four trigger points.

• The two medial trigger points lie in the medial head of the gastrocnemius, with the upper trigger point found just below the crease of the knee, and the lower trigger point an inch or two below it.
• The two lateral trigger points in the lateral head mirror the positioning of the medial trigger points, except that they lie slightly more distal (towards the foot) by about a half-inch.
