Tendon Structure & Composition

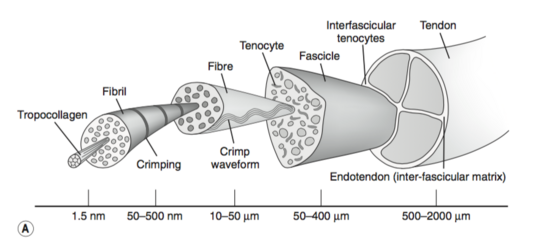

Tendons have a hierarchical arrangement that is sequentially composed of collagen molecules, fibrils, fibres, fascicles, and lastly the tendon unit. Tendon units are encased in epitenon, which reduces friction with neighbouring tissues.[1]

The tensile strength of a tendon is dependent on collagen. Type I collagen comprises approximately 70–80% of the dry weight of a normal tendon. Additional to type I collagen, many other types of collagen are also present, including type III (functions to form rapid cross-links in stabilizing repair sites in torn tendons), type V (regulates collagen fibril diameter), and type XII (provides lubrication between collagen fibres).[1]

In addition to collagen, many proteoglycans (e.g. aggrecan and decorin) and glycoproteins (e.g. elastin, fibronectin, and tenascin-C) also have important functions in tendons. Aggrecan binds water and resists compression, while decorin promotes fibrillar slippage. Elastin, fibronectin, and tenascin-C function to enhance mechanical stability, aid tendon healing, and allow tendons to revert back to their pre-stretched lengths after normal physiological loading, respectively.[1]

For more on tendon anatomy, refer here.


Tendon Mechanical Properties: Non-Linear Elasticity

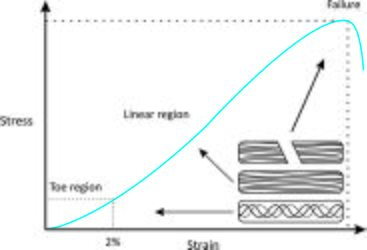

The structure and composition of tendons allow for their unique mechanical behavior, reflected by a stress-strain curve consisting of three distinct regions (Fig. 1):[2]

  1. Toe region: this is where “stretching out” or "un-crimping" of crimped tendon fibrils occurs from mechanically loading the tendon up to 2% strain. This region is responsible for nonlinear stress/strain curve, because the slope of the toe region is not linear.
  2. Linear region: this is the physiological upper limit of tendon strain whereby the collagen fibrils orient themselves in the direction of tensile mechanical load and begin to stretch. The tendon deforms in a linear fashion due to the inter-molecular sliding of collagen triple helices. If strain is less than 4%, the tendon will return to its original length when unloaded, therefore this portion is elastic and reversible and the slope of the curve represents the Young's modulus.
  3. Yield and failure region: this is where the tendon stretches beyond its physiological limit and intramolecular cross-links between collagen fibres fail. If micro-failure continues to accumulate, stiffness is reduced and the tendon begins to fail, resulting in irreversible plastic deformation. If the tendon stretches beyond 8-10% of its original length, macroscopic failure soon follows.
Tendon Stress-Strain Curve
    Figure 1[2]

Since there are many muscles in the body, each tendon differs in its function and therefore its mechanical properties.[1] For example, the Young’s modulus of the human patellar tendon is 660 ± 266 MPa (mean ± standard deviation),[3] whereas the tibialis anterior tendon is about 1200 MPa.[4] Aging also significantly affects the mechanical properties of tendons:[1] Young’s modulus of human patellar tendons aged 29–50 years is about 660 ± 266 MPa, but is about 504 ± 222 MPa in those aged 64–93 years.[3]

Tendon Mechanical Properties: Viscoelasticity

Tendons also have viscoelastic properties (likely the result of collagenous proteins, water, and the interactions between collagens and proteoglycans), meaning their mechanical behaviour is dependent on the rate of mechanical strain.[1] In other words, the relationship between stress and strain for a tendon is not constant but depends on the time of displacement or load.[2] A viscoeleastic material is more deformable at low strain rates but less deformable at high strain rates. Therefore, tendons at low strain rates tend to absorb more mechanical energy but are less effective in carrying mechanical loads. However, tendons become stiffer and more effective in transmitting large muscular loads to bone at high strain rates.[1]

There are three major characteristics of a viscoelastic material of tendons:[2]

1. Creep

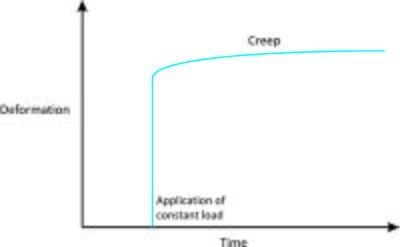

  • Indicates increasing deformation under constant load (Fig. 2).
  • This is in contrast with the usual elastic material, which does not elongate, no matter how long the load is applied.








Creep curve intechopen.jpeg
    Figure 2[2]

2. Stress relaxation

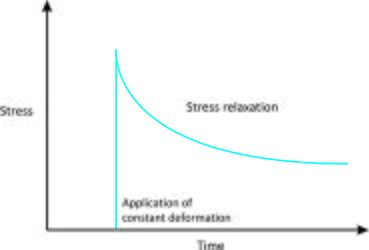

  • Indicates stress acting upon a tendon will eventually reduce under a constant deformation (Fig. 3).









S-r curve intechopen.jpeg
    Figure 3[2]

3. Hysteresis or energy dissipation

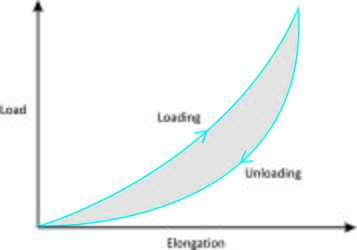

  • When a viscoelastic material is loaded and unloaded, the unloading curve is different from the loading curve (Fig. 4).
  • The difference between the two curves represents the amount of energy that is lost during loading.
  • If loading and unloading are repeated several times, different curves can be obtained.

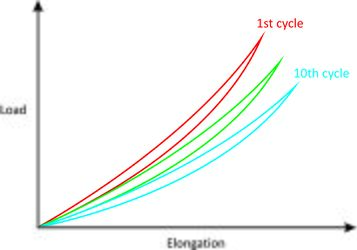

  • After about 10 cycles, however, the loading and unloading curves no longer change (although they are still different) and the amount of hysteresis is reduced allowing the stress-strain curve to become reproducible (Fig. 5).













Hysteresis curve intechopen.jpeg
    Figure 4[2]

Rep loading-unloading curve intechopen.jpeg
    Figure 5[2]

Factors Affecting Mechanical Forces

Many factors affect the mechanical forces on tendons during normal locomotion.[5]

First, different tendons in the body are subjected to different levels of mechanical loads.[6] For example, it has been estimated that the peak force transmitted through the Achilles tendon in humans during running is 9 kN, which is equivalent to 12.5 times body weight.[7] In human hand flexor tendons, it has been shown that the intratendinous force of the tendon depends on whether the force is generated passively or actively, and whether the position of the joint is in flexion or extension. During passive mobilization of the wrist, the flexor tendon force was found to be between 1-6 N and up to 9 N during similar mobilization of the fingers. During a 35 N fingertip pinch, tendon forces can be measured up to 12 N whereas during active, unresisted finger motion, tendon force can reach approximately 35 N.[8]

Second, both the level of muscle contraction and the tendon’s relative size influence mechanical forces on a tendon. In general, the greater the cross-sectional area of a muscle, the higher force it can produce and the larger stress its tendon undergoes (e.g. patellar tendon vs. hamstring).[9]

Third, different activities induce different levels of forces, even on the same tendon (in animal models).[10] Similarly, varying the rate and frequency of mechanical loading results in different tendon forces.[11][12]


The Differential Effects of Mechanical Loading on Tendons[1]

Mechanical Load Level Effects on Tendon

Low

• ↓ Tensile strength
• ↓ Size
• ↓ Collagen production
• ↓ Anabolic activities
• ↑ Catabolic activities

Moderate

• ↑ Tensile strength
• ↑ Collagen synthesis
• ↓ Collagen degradation
• ↓ Adhesions
• ↓ Inflammatory mediator (e.g. prostaglandin E2)
• ↑ Tendon stem cells (TSCs) differentiating into tenocytes

Excessive

• ↓ Tensile strength
• ↓ Collagen organization
• ↑ Myofibroblasts
• ↑ Inflammatory mediators
• ↑ TSCs differentiating into nontenocytes (adipocytes, osteocytes, chondrocytes)
• ↑ Leukotrienes (↑ edema)

Normal tendons can show a disorganised response to loading as well as improved tendon structure with over long term loading.  Normal tendons in Australian footbal athletes have been shown on UTC imaging to demonstrate disorganisation as a normal response to the mechanical loading of a game, this disorganisation returned to normal after 4 days[13].  In the same research series the Australian football players showed an improvement in tendon structure over a 5 month pre season training period with increased fibrillar alignment[14].
