Multiligament Injured Knee Dislocation


Original Editors - Caro De Koninck

Top Contributors - Estelle Hovaere, Leana Louw, Caro De Koninck, Daphne Jackson and Evan Thomas

Definition/Description

A multi-ligament injured knee is commonly misnamed knee dislocation in medical literature. A dislocation causes complete joint disruption, resulting in the loss of contact of the articular surfaces.[1][2] Subluxation occurs when the articular surfaces stay in contact.[1] Both of these fall under the term "multi-ligament injured knee". A multi-ligament injured knee is caused by injury of at least two out of the 4 major knee ligaments (namely ACL, PCL, LCL and MCL), normally associated with considerable ligamentous disruption.[1][3][4] It causes disruption of the active and passive stabilizers of the knee joint and is often linked with compromise to neurovascular structures and can potentially be limb theatening.[2]

Clinically relevant anatomy

The knee joint is made up of articulations of the distal femur, proximal tibia and patella.[2]

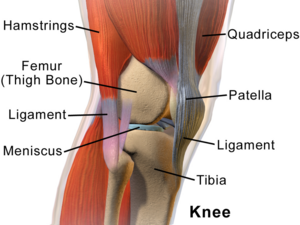

Knee Anatomy Side View.png

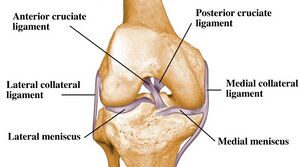

Ligaments:[2]

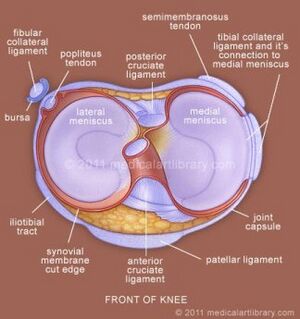

Menisci:[2]


Muscles:[2]

Vasculature:[2]

  • Femoral artery
  • Popliteal artery

Innervation:[2]

  • Terminal branches of the following nerves:
  • Cutaneous nerves:
    • Posterior & lateral femoral cutaneous
    • Lateral sural cutaneous
    • Saphenous
    • Obturator

Knee stabilizers

Medial (against valgus stress):[2]

Posteriolateral:[2]

  • Superficial: Iliotibial band, biceps femoris, fascia
  • Middle: Patellar retinaculum, patellofemoral ligaments
  • Deep: LCL, popliteus tendon, popliteofibular ligament, fabellofibular ligament, arcuate ligament, joint capsule

See the page on the knee joint for in-depth information the anatomy and kinematics of the knee. This background will aid in understanding knee dislocations better.

Epidemiology/Etiology

Knee dislocation is estimated to be less than 0,2% of all orthopedic injuries. Complete knee dislocations are rare and usually happen after major trauma, including falls, car crashes, and other high-speed injuries.[4] Spontaneous dislocation is often seen in cases associated with obesity, and make up about 20% of knee dislocations seen in practice[2][3] Knee dislocations can also present in congenitally and has an incidence of approximately 1 per 100,000 live births. 40-100% of these cases have additional musculoskeletal anomalies.[5]

According to a research article published in 2006, the following percentages are associated with knee dislocations:[4]

  • Anterior dislocation = 40%
  • Posterior dislocation = 33%
  • Medial dislocation = 4%
  • Lateral dislocation = 18%
  • Rotary dislocation = 5%
  • Complete disruption of all 4 major knee stabilizing ligaments = 11%

Complications

  • Vascular disruption
  • Iatrogenic vascular injury
  • Common peroneal nerve injuries
  • Arthrofibrosis
  • Compartment syndrome
  • Traumatic amputation
  • Ligament repair/reconstruction failure
  • Post-traumatic osteoarthritis (50% of cases)
  • Development of chronic pain
  • Long-term joint instability
  • Mobility limitions
  • Decreased quality of life

[4][6]

Characteristics/Clinical presentation

Most multi-ligament knee injuries are easily reducible with minimal assistance or even spontaneous.[1] Dislocation can be suspected based on physical exam findings of joint instability/ligamentous injuries, but also based on hemarthosis and tenderness to palpation.[7] It is often difficult to diagnose if a reduced knee was dislocated or subluxed without clinical witness or radiological evidence.[1] Associated meniscal, osteochondral, and neurovascular injuries are often present and can complicate management.[8]

Mechanism of injury:[4]

  • Anterior dislocation: Hyperextention force
  • Posterior dislocation: Anterioposterior force (e.g. dashboard injury)
  • Medial dislocation: Varus force (often associated with tibial plateau fractures)
  • Lateral dislocation: Valgus force (often associated with tibial plateau fractures)
  • Rotary dislocation: Combination of forces

Classification:[4]

  • Acute: < 3 weeks post injury
  • Chronic: > 3 weeks post injury

Associated injuries:[4]

Classification

Classification of knee dislocation are normally postional and/or anatomical. As most knees spontaneously reduce, postional classification can not always be used.

The Kennedy Classification uses the position of the tibia in relation to the femur to classify knee dislocations as follows:[3][9]

  • Anterior
  • Posterior
  • Lateral
  • Medial
  • Rotatory:
    • Anteromedial
    • Anterolateral
    • Posteromedial
    • Posterolateral
Lateral knee dislocation
Posterior knee dislocation

The Schenk anatomical system is based on ligament injury with additional arterial and neural injuries:[2]

  • Type I: Single cruciate tear
  • Type II: Bicruciate tears without collateral tears
  • Type III (M): Bicruciate tears with involvement of MCL
  • Type III (L): LCL and posterolateral corner (PLC) tear
  • Type IV: All four ligaments torn
  • Type V: Fracture-dislocation

Diagnostic procedures

It is easy to diagnose the unreduced knee, but as most cases present already reduced, it is important to do a thorough evaluation to make an accurate diagnosis and to exclude any potential associated injuries.[4] Patients normally come in with a complaint of severe pain and instability, limiting activities of daily living and sport. Physical examination of a patient with a suspected knee dislocation should take place shortly after the injury is sustained.[10] Knee dislocation often goes hand-in-hand with concomitant injuries to other structures such as nerves and blood vessels. It is very important to do a neurovascular assessment to exclude injuries to perineal nerve and popliteal artery.[6]

Special investigations

  • X-rays: AP and lateral views should be routinely done in suspected knee dislocations due to high incidence of associated fractures
  • Doppler ultrasound: To assess the blood flow in the arteries
  • Ankle-brachial index: Can be used to determine if angiography is needed (threshold of <0.9 can positively predict a vascular injury in need of surgery)
  • Arteriography: Recommended if there are abnormal findings with the ankle-brachial index, as well as previous history of ischaemia or any present signs of ischaemic or circulatory compromise
  • MR angiography: Can be used in the acute setting as an alternative to arteriography
  • MRI: To be used for surgical planning

[4][10][11]

Examination

It is very important to do thorough and repeated evaluation of the neurological and vascular status for signs of injury to the common peroneal nerve, popliteal artery and to assess for compartment syndrome.[6]

  • Observation:[4]
    • Unreduced knee
    • Swelling and bruising - uncontained haemarthrosis is a major finding that can lead to the diagnosis of knee dislocation; it also suggests disruption of the joint capsule
  • Palpation:[4][6]
    • Diffuse pain present
    • Pulses - Presence of dorsalis pedis; to be used to exclude vascular injuries
  • Range of motion: Decreased[4]
  • Ligament testing: This might be challenging to do in the acute, reduced knee as a result of pain and discomfort[9]
    • PCL and posterior capsule disruption - hyperextention on passive elevation of knee
    • Varus and valgus laxity tested in full extention - indication of associated capsular disruption
    • Lachman test: Laxity present in anterior and posterior directions as a result of disruption of the cruciate ligaments
    • Anterior drawer: Not recommended as it is challenging to perform and the reliability is compromised as a result of pain, loss of range of motion and muscle spasms
    • Pivot-shift and reverse pivot-shift test: Not recommended in acute cases, extremely difficult to test with swollen knee where MCL is disrupted; works well in chronic cases
    • Dial test: PCL and posterolateral corner involvement when finding of increased external rotation of the tibia is present
  • Neural assessment:[7]
    • Mostly done to exclude injuries to common peroneal nerve
    • Motor: Decreased muscle power of the ankle is a good indication of a possible injury to the common peroneal nerve
    • Sensory: Decreased/numbness in the presence of an injury

Outcome Measures

Medical Management

Knee dislocations should be reduced as soon as possible, where after assessment of the vascular status of the leg should be done.[4][6] Definitive management of acute knee dislocation remains a matter of debate. Surgical reconstruction of the ligaments has proven to be more beneficial for active patients.[3] Early surgical reconstruction have shown to have better outcomes when looking at knee stiffness and Lysholm scores. Conservative treatment in a range of motion brace is often chosen if the joint feels relatively stable after reduction. It is further the treatment of choice for older, more sedentary patients with the collateral ligaments still intact.[3][4][13]

Knee dislocation with vascular injury

  • Vascular repair:
    • Popliteal artery bypass graft
    • Repair with reverse saphenous vein graft
  • Repair posterior capsule tear: Reattach and/or augmentation of the ligaments
  • Knee stabilization:
    • Range of motion brace (e.g. Donjoy/Exoskeleton)
    • Knee-spanning external fixator to protect vascular repair if instability still present
  • Remaining instability should be addressed at a later stage - normally only 6-12 months later

[4][6]

Knee dislocation without a vascular injury

  • Primary repair (when swelling permits)
    • If not able to repair all the ligaments from the start, capsular and collateral reconstruction should be done first. Cruciate reconstruction can then be done after 6-12 weeks, when the capsule is healed.
  • Stabilize in a plaster of paris cast or range of motion brace (e.g. Donjoy/Exoskeleton)

[4][6]

Nerve injuries

There is a 20% chance of spontaneous recovery after an injury to the common peroneal nerve, usually in cases where the nerve had a short distance of damage, Nerve grafting or tibialis posterior tendon transfers can be done to restore dorsiflexion.[4]

Other surgical options

Percutaneous quadriceps recession (PQR)[3][9]

Medial and lateral incisions are made at the superior border of the patella to divide the medial and lateral quadriceps and retinaculum. The knee is then forced into flexion, while applying direct forward pressure on the femoral condyles.

V-Y quadricepsplasty[3][9]

Incision in the central part of the quadriceps tendon to allow for a V–Y advancement. The iliotibial band is released. The anterior capsule of the knee is divided transversely as far as the collateral ligaments, and the quadriceps muscle is mobilized. The knee is then reduced and flexed to 90°. The lengthened quadriceps is resutured with the knee held at 30°. This treatment has a higher morbidity compared with the PQR due to a long incision with scarring, adhesions,and wound breakdown, as well as blood loss. However, V-Y quadricepsplasty is more successful in attaining and prolonging reduction in severe and resistant cases.

Manipulation under anaesthetics/Arthrolysis

To be done in cases where stiffness persists despite therapeutic input after surgical correction of the dislocated knee. This is normally done between 3 and 6 months after initial surgery.[4]

Congenital knee dislocations

Patients who are diagnosed with knee dislocation at birth are examined within 24 hours. Early conservative management is recommended, consisting of direct reduction under gentle, persistent manual traction.[14]

Physiotherapy management

Treatment depends on the amount of damage to the different structures. Each patient will have a different treatment depending on the current stability of the patient, and eventually the other associated injuries. The goal of physiotherapy is to restore stability and regain pain-free functional mobility.[5]

Conservative management

Patients are put in a limiting range of motion brace to allow for the healing of the capsule and collateral ligaments. This will restore varus and valgus stability. During early exercises, wearing a range of motion brace is important to limit flexion to 90° and extension to 45°. After conservative treatment, rehabilitation may begin immediately.[15]

  • 6 to 8 weeks initial mobilization
  • Weight bearing exercises
  • Passive and active training of the range of motion
  • Muscle strengthening

The following can be done as part of the rehabilitation process. Note that it in bulleted in order of progression. Each patient should be specifically evaluated before attempting the specific treatment modalities.

  • Cardiovascular conditioning: Upper and midbody exercises, along with single-leg stationary bicycling
  • Quadriceps strengthening: Very important to prevent patellofemoral problems during rehabilitation
  • Light manual-resistance exercises between 45°-90°
  • Biodex
  • Manual therapy
  • Leg-press machine > 8 weeks of rehabilitation. During this face, the knee needs only minimal protection. These exercises should be followed by
  • High-speed exercises with light resistance
  • Proprioception (once range of motion and muscle power has been regained)

[15]

Post-operative rehabilitation

Surgery aims to restore the anatomical structures with sufficient strength. Passive and active of the assisted range of motion rehabilitation is needed. Most patients lose range of motion and do not recover entirely after surgical intervention for a multi-ligament injured knee.[4]

Post-surgical rehabilitation for this injury varies according to the ligaments that were injured and repaired. An accelerated rehabilitation programme with knee bracing and early range of motion training has shown to decrease stiffness.[4] Physiotherapy is not advised after PQR and V-Y quadricepsplasty.[3] The following is a rough guideline, but it is important to assess each patient individually to create a customized rehabilitation programme taking their goals and expectations into account.[4][9]

Acute phase

  • Mobilization: Toe-touch weight bearing in range of motion brace
  • Continuous passive motion machine: Range of motion brace should be worn, with 40° of extension and 70° of flexion limits
  • Isometric quadriceps exercises - very important to achieve full extension as soon as possible in the first week post-surgery
    • Neuromuscular facilitation techniques can be used here

Week 7-12

  • Mobilization: Partial weight bearing
  • Range of motion training can commence with the aim of achieving full range of motion:
    • PCL repair: Only passive and active-assisted knee flexion

Week 13-24

  • Mobilization: Full weight bearing
  • Range of motion: Working towards full knee flexion and extension range of motion
  • Muscle strengthening: Closed kinetic chain exercises (start off gentle)

Week 25-36

  • Muscle strengthening: Progressions
  • Proprioception training

Week 37+

  • If able to pass functional tests:
    • Return to sport
    • Return to heavy work

Clinical bottom line

Multi-ligament injuries to the knee is an uncommon injury that can be easily missed as most knees relocate spontaneously or with very little effort. Knee dislocations are often associated with severe soft tissue damage, and even with advances in medical and therapeutic management, return to full baseline function is not common. Studies shown that 39% of patients classify themselves as "nearly normal", 40% as "abnormal" and 21% as "severely abnormal".[4] Patients are faced with a long rehabilitation programme, with return to full activity taking at least 9 to 12 months. Most knee dislocations require reconstructive surgery. After the treatment and surgery the results are good. In most cases the damaged knees return to an almost normal state. Chronic pain is a common problem, occurring in 46% of cases. The prognosis is best with an optimal custom rehabilitation programme.[4]
