Sleep Apnea



Definition/Description

Sleep apnea is a disorder in which breathing is interrupted or paused during sleep. The pauses in breathing can last a few seconds to minutes and are long enough to:

  • Disrupt sleep
  • Decrease level of oxygen in the blood
  • Increase level of carbon dioxide in the blood


These breathing interruptions can occur more than 30 times an hour and significantly impair the quality of sleep. Because of this, sleep apnea is a leading cause of excessive daytime sleepiness.[1]

There are three types of sleep apnea: central, obstructive and mixed. Obstructive sleep apnea is the most common and the main focus of this article.

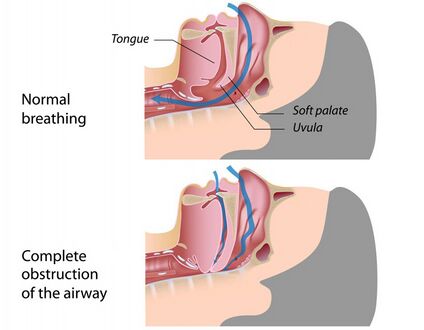

Obstructive sleep apnea (OSA) is caused by repeated partial or complete obstruction of the upper airway that diminishes or stops breathing.

Central sleep apnea occurs when the brain is less sensitive to changes in carbon dioxide levels in the blood and fails to send signals to the respiratory muscles to breathe deeper.

Mixed sleep apnea is a combination of both obstructive and central sleep apnea episodes.[1]

Prevalence

OSA is commonly seen in males; they have a 2-3x increased risk of developing OSA as compared to women. A women's risk of developing OSA increases during pregnancy.[2] [3] OSA can occur in childhood and adolescence, but typically, it is more common around middle age (40-60 years old). After 65, occurrence of OSA plateaus, and it is unclear whether this is due to increased mortality from OSA or remission of OSA.[2] Genetics and abnormalities or conditions of the craniofacial morphology also increase the likelihood of OSA. Individuals with a first-degree relative with OSA were at a 1.5-2x increased risk of developing OSA.[3] There appears to be a 2.5x increased occurrence of OSA among the African-American population versus the Caucasian population.[2] [3] Among other ethnicities, OSA was more prevalent in American Indians, Hispanic adults, and Pacific Islanders when obesity played a large role.[3] Also, OSA is common in individuals who spend long periods of time sitting and driving, such as commercial truck drivers.[4]

Characteristics/Clinical Presentation

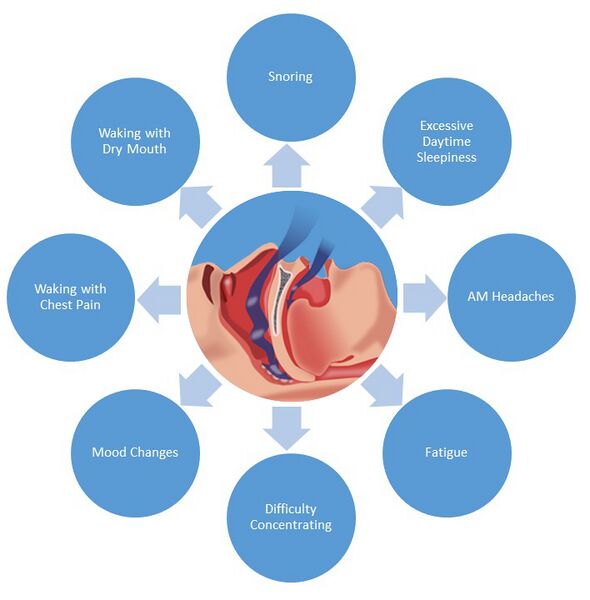

Common signs and symptoms of OSA:[5]


Associated Co-morbidities

  • Hypertension (HTN) *Treatment of OSA has been shown to help decrease HTN, specifically in middle-aged individuals.[6]
  • Obesity *Excessive body weight affects breathing capability due to increased adipose around the airway structures.[2] [3]
  • Congested Heart Failure (CHF)[4]
  • Fatal and Nonfatal Cardiovascular Events[7]
  • Type II Diabetes[4]
  • Pulmonary Hypertension[4]
  • Stroke *OSA may be present prior to CVA as suggested in studies where neurological deficits, excluding OSA, recovered[4] [7]
  • Depression[8]
  • Cancer *Especially breast, nasal, and prostate CA[9]

Medications

Numerous studies have shown that pharmacological interventions in the treatment and management of OSA are not as effective as the use of PAP, specifically CPAP.[4] [10] [11] Studies have focused on:

  • Increasing ventilatory drive (progestogens, theophylline, acetazolamide)
  • Increasing upper airway tone (serotonergics, cholinergic)
  • Decreasing REM sleep (antidepressants, clonidine)
  • Increasing arousal threshold (eszopiclone)
  • Increasing cross-sectional area or reducing surface tension of upper airway (topical therapy- fluticasone, lubricant)

These drugs may be useful, but more research is needed to determine long-term viability and overall effectiveness.[12]

Studies have noted positive findings on other medications and its applicability to OSA:

Drug Use Effect Notes
Qsymia (Phentermine with extended release Topiramate)[10] Weight loss

Decreased AHI, decreased weight

More research needed
Modafinil[10] [11] Wakefulness Increased daily functioning, relieved daytime sleepiness

Use as adjunct therapy; long-term cardiovascular effects unclear; more research needed

Leukotriene Antagonists[11]
Allergies Decreased RDI (respiratory disturbance index), decreased adenoid size *in children More research needed
Donepezil[11] Alzheimer's Decreased AHI, improved REM sleep, improved O2 saturation More research needed
Mirtazapine[11] Antidepressant  Decreased upper airway collapse May cause weight gain & sedation; more research needed
Inhaled corticosteroids[11] Asthma Decreased AHI, decreased nasal airway resistance, improved daytime wakefulness No indication of improved breathing in sleep; not recommended at this time; more research needed
Lansoprazole (proton pump inhibitor)[12]
GI (ex: GERD) Decreased AHI No change in O2 saturation or sleep efficiency; more research needed


Certain medications have been found to worsen OSA and should not be prescribed:

  • CNS Depressants (ex: opiates, benzodiazepines, barbiturates)
  • Beta Blockers (ex: Propranolol)
  • Erectile Dysfunction Medications (ex: Sildenafil)[11]

Diagnostic Tests/Lab Tests/Lab Values

Individuals suspected of OSA undergo a pretest assessment: a history, a clinical examination, and sleep questionnaires.[13]

  • History: possible risk factors, co-morbidities, snoring, and what a normal night of sleep is like to him/her.[14]
  • Indices: AHI (apnea-hypopnea index), RDI (respiratory disturbance index)[15]
  • Clinical Examination: nose, tonsils, palate, tongue, neck circumference, upper airways.[14] [8] Findings are predominantly inconclusive and requires training for proper assessment.[14]
  • Questionnaires: Epworth Sleepiness Score (ESS) for daytime sleepiness; Berlin questionnaire for common OSA risk factors and symptoms.[14]
  • Oximetry: analyze oxygen saturation of hemoglobin to help identify individuals unlikely to have OSA.[8]

For the diagnosis of sleep disorders, including OSA, the standard test is Level 1 polysomnography. Individual spends the night in asleep laboratory, where a sleep technician is present, and 7 to 16+ channels are monitored. These channels track the cardiovascular system, respiratory system, and neurologic system. It can also monitor sleep duration, sleep arousals, and sleep stages.[13]

For those with a high probability of moderate to severe OSA, a good diagnostic test is Level 3 portable device (polygraph). Portable monitors are brought into the individual’s home or preferred location. These monitors look at at least 3 channels: oximetry, airflow, and respiratory effort in sleep. It does not record sleep duration, arousals, sleep stages, or non respiratory sleep disorders.[13]

Etiology/Causes



Relaxation of the throat and tongue muscles during sleep obstructs the airway and can decrease or stop breathing.

Factors that contribute to airway obstruction are:[15]

  • Obesity
  • Large neck circumference
  • Large tongue or tonsils
  • Narrow airway due to bony structures of head and neck
  • Taking sedative medication
  • Drinking alcohol
  • Smoking
  • Nasal congestion

Systemic Involvement

Cardiovascular System
OSA causes the level of oxygen in the blood to decrease and the level of carbon dioxide to increase. This leads to a sympathetic activity, vasoconstriction and inflammation. In some OSA episodes, blood pressure can rise as high as 240/130 mm Hg[16].

Some complications of the changing hemodynamics are[16]:

  •  Hypertension
  •  Heart Failure
  •  Arrhythmias
  •  Stroke
  •  Myocardial Infarction
  •  Renal Disease


Metabolic Dysfunction
The increased sympathetic activity, increased catecholamines and other metabolic disturbances can lead to[16]:

  • Diabetes Mellitus
  • Insulin Resistance
  • Glucose Intolerance
  • Metabolic Syndrome


Psychological Problems
Although the exact relationship between OSA and depression is not yet clearly understood, some studies have shown a decrease in the symptoms of depression after treatment of OSA[8].

Medical Management (current best evidence)

A variety of methods are utilized to treat individuals with OSA:

  • Weight reduction (diet, exercise, medications)[4] [11]
  • Sleep positioning (avoid supine with positional devices)[4]
  • Pharmacological treatments (topical nasal corticosteroids as an adjunct, refer to Medications for more information)[4]
  • Oral applicances (Dental applicances)[4]
  • Upper air reconstructive or bypass surgeries[4]

Oral Appliances

  • Mandibular repositioning appliances (MRA): holds the mandible in an advanced position
  • Tongue retaining devices (TRD): holds the tongue forward

These attempt to avoid blockage of the upper airways while sleeping, and are commonly used for mild to moderate OSA and for those who do not benefit from CPAP.[4]

https://en.wikipedia.org/wiki/Positive_airway_pressure

Positive airway pressure (PAP)

PAP, especially CPAP, is the most common method of treatment for mild, moderate, and severe OSA. PAP provides pneumatic splinting to maintain the opening of the upper airway and effectively decreases AHI (Apnea Hypopnea Index= number of apnea or hypopnea episodes per hour of sleep).[4] [10] Normal AHI is less than 5 per hour.[10] PAP can be provided in several ways: continuous (CPAP, the gold standard), bilevel (BPAP), and autotitrating (APAP) and via three interfaces: nasal, oral, or nasoral.[4]

Surgical Interventions

These try to improve the airway passages via nasal, oral, oropharyngeal, nasopharyngeal, hypopharyngeal, laryngeal, and global airways. Possible surgeries include:

  • Maxillomandibular Advancement (MMA): moves top and lower jaw to increase upper airway[10]
  • Uvulopalatopharyngoplasty: removes excess tissue at back of throat (ex: uvula) to increase airway[10]

Surgical procedures are beneficial for those with severely obstructive anatomy and unsuccessful treatments with CPAPs or OAs.[4]

Hypoglossal Nerve-Stimulating System (HGNS)

 This treatment, the insertion of the Hypoglossal Nerve-Stimulating System (HGNS), is currently being studied. The Hypoglossal Nerve is the cranial nerve that innervates the tongue, especially the genioglossus muscle, and it plays a large role in maintaining airway patency. The genioglossus "protrudes the tongue, dilates the pharynx, and mitigates airflow obstruction during sleep."[17]

https://commons.wikimedia.org/wiki/File:Genioglossus.png

This method has been studied via submental transcutaneous stimulation, direct fine wire stimulation, and direct hypoglossal stimulation.

  • Submental transcutaneous stimulation: aroused patients from sleep without clear improvements in the airflow, but may increase lingual muscle tone and improve airway patency.
  • Direct fine wire stimulation: produced effective contractions of the genioglossus to improve pharyngeal patency.
  • Direct hypoglossal stimulation: implantation of hypoglossal cuff electrodes around the proximal and distal nerve trunk can increase pharyngeal patency and decrease pharyngeal collapsibility without arousing the patients. The development of a fully implantable HGNS is currently being studied.[17]

Physical Therapy Management (current best evidence)

Although there is little research providing sound evidence based physical therapy interventions for OSA at this time, it often goes undiagnosed providing opportunities for physical therapists to identify, educate and refer patients who present with signs and symptoms of OSA. Undiagnosed OSA is associated with increased risk of hypertension, cardiovascular disease, motor vehicle accidents and reduced quality of life[2].

Physical Therapists can educate patients on OSA:

  • Signs and symptoms
  • Risk factors
  • Associated co-morbidities
  • How to get diagnosed/tested
  • Risks of undiagnosed OSA

Exercises For Obstructive Sleep Apnea

EXERCISES FOR THE TONGUE
TONGUE BRUSHING
Method:
1. With your toothbrush brush the top and sides of your tongue, while your tongue is sitting on the floor of your mouth.
2. Repeat the individual sections 5 times each.
3. Complete the exercise three times daily.
Purpose – to strengthen the tongue muscles-with the added advantage of maintaining great oral hygiene!



Tongue brushin Exercise1.png

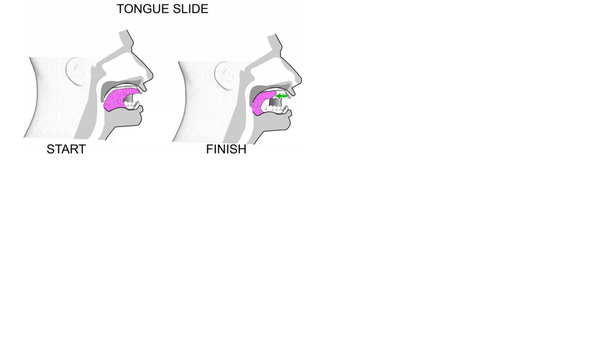

TONGUE SLIDE
Method:
1. Looking straight ahead, position the tip of your tongue against the back of your top, front teeth.
2. Slide your tongue backward.
3. Repeat 10 times.
Purpose – to tone and strengthen the tongue and throat muscles.

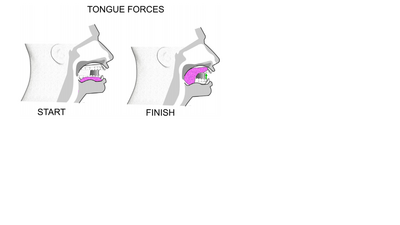

Tongue exercise2.png TONGUE FORCES
Method:
1. Forcibly suck your tongue upward until the whole tongue is against your palate.
2. Hold this position for 4 seconds.
3. Repeat 5 times.
Method:
1. Force the back of your tongue downward until the whole tongue is resting on the floor of your mouth.
2. Keep the tip of your tongue touching the back of your lower teeth.
3. Hold for 4 seconds.
4. Repeat 5 times.
Purpose - both of these exercises strengthen the tongue and tone your soft palate.

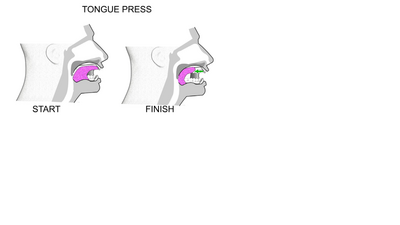

Tongue Force.pngTONGUE PRESS
Method:
1. Push your tongue against your hard palate (the top and front of your mouth).
2. Do this for 5 seconds.
3. Slide your tongue backward to the back of your mouth.
4. The initial third of your tongue should be against your hard palate, not just the tip.
5. Keep your jaw open throughout the exercise.
6. Refrain from biting down - keep your teeth apart.
7. Repeat this movement 10 times.
8. Repeat 4 times a day.
Purpose – to strengthen the genioglossus (the main muscle used for sticking your tongue out), and to increase the strength in the hyoid muscles and bone. The hyoid bone is located in the centre of the neck. It sits between the chin and thyroid cartilage.
The exercise assists by putting the hyoid bone in the correct position and keeping it there1.
The hyoid bone is a free moving, u-shaped bone in the neck. The volume of the tongue should reduce too.


Tongue Press.png

Differential Diagnosis

Other diagnoses, especially other sleep disorders, may present as OSA due to similar symptoms (ex: fatigue, excessive sleepiness, HTN, sleep disturbance).[18] Alternative diagonses include:

  • Nocturnal Frontal Lobe Epilepsy[19]
  • REM Behaviour Disorder[10]
  • Periodic Limb Movement Disorder[10] [15]
  • Central Sleep Apnea[10] [15]
  • Insomnia[8]
  • Aging and Age-Related Changes (sleeping less, tiredness, nocturia)[8]
  • Medications (side effects, multiple prescriptions)[8]
  • Hypothyroidism[8] [15]
  • Narcolepsy[20] [15]
  • Shift Work Sleep Disorder (SWSD)[20]
  • Idiopathic Hypersomnia[20]
  • Asthma[15]
  • Gastroesophageal Reflux Disease (GERD)[15]
  • Chronic Obstructive Pulmmonary Disease (COPD)[15]
  • Depression[8] [15]

Case Reports/ Case Studies

1. Daoulah A, Ocheltree S, Al-Faifi S, Ahmed W, Asrar F, Lotfi A. Sleep apnea and severe bradyarrhythmia – an alternative treatment option: a case report. J Med Case Reports 2015; 9(1): 113-117.

http://www.ncbi.nlm.nih.gov/pmc/articles/PMC4437673/ (OSA and Bradyarrhythmia)

2. Guimarães T, Colen S, Cunali P, Rossi R, Dal-Fabbro C, Ferraz O, et al. Treatment of obstructive sleep apnea with mandibular advancement appliance over prostheses: A case report. Sleep Science 2015;8(2):103-106.

http://www.ncbi.nlm.nih.gov/pmc/articles/PMC4608885/ (Treatment of OSA with Mandibular Appliance)

3. Fang H, Miao N, Chen C, Sithole T, Chung M. Risk of Cancer in Patients with Insomnia, Parasomnia, and Obstructive Sleep Apnea: A Nationwide Nested Case-Control Study. J Cancer 2015;6(11):1140-1147.

http://www.ncbi.nlm.nih.gov/pmc/articles/PMC4615350/ (OSA and Cancer)

4. Cadby G, McArdle N, Briffa T, Hillman D, Simpson L, Knuiman M, et al. Severity of OSA Is an Independent Predictor of Incident Atrial Fibrillation Hospitalization in a Large Sleep-Clinic Cohort Chest. 2015;148(4):945-952.

http://www.sciencedirect.com/science/article/pii/S0012369215502833 (OSA and A-fib)

5. Meuleners L, Fraser M, Govorko M, Stevenson M. Obstructive Sleep Apnea, Health-Related Factors, and Long Distance Heavy Vehicle Crashes in Western Australia: A Case Control Study. Journal of Clinical Sleep Medicine 2015; 11(4): 413-418.

http://www.ncbi.nlm.nih.gov/pmc/articles/PMC4365454/ (OSA and MVA)
